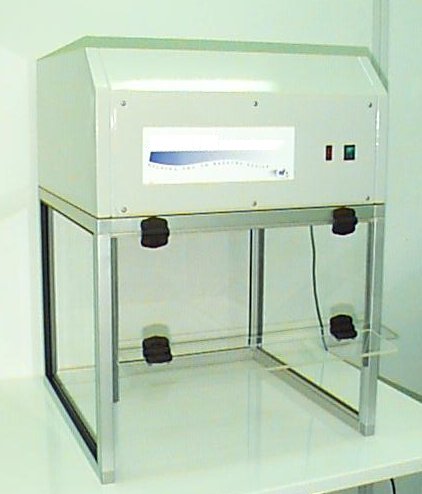

LFC 60 - Laboratory fume cabinet

The LFC60 fume cabinet is a compact, recirculating fume cabinet that has been designed to provide operator safety and ease of use in laboratory applications. Capture of fumes is achieved by inward airflow at a velocity of > 0.5 m/s and carbon filtration of exhaust air. The upper housing contains the mains switch, low-airflow alarm, speed control and carbon filter.

Cabinets are supplied with an open base and can be positioned over an existing utility such as a sink or be placed directly on to a flat bench.An optional work tray, manufactured from polypropylene, is available if containment of spills is required.

The standard activated-carbon filter filter* is suitable for use with a wide range of common laboratory fumes.
Specifications.

Construction	Baked enamel coated top module.	Airflow m³/h	200
Colour	Grey	Face velocity m/s	> 0.5
Windows	Clear Perspex	Face velocity m/s	15 W
Spillage tray	Optional polypropylene	Carbon filter No. & mass	1 x 4 kg
Fan	Centrifugal	Noise level dB(A)	58
Electrical Supply	240V, 50Hz
Controls	Mains power On/Off
Monitoring	Alarm for airflow and filter condition

Dimensions

Width	600mm
Depth	580mm
Overall height	800mm
Working height	500mm
Work area	580 x 520

*Special-purpose carbon filters for specific applications are available to order.

AES Environmental is a registered laboratory, provides comprehensive on-site maintenance, testing and certification services for safety cabinets, laminar flow work stations, cleanrooms and HEPA filter installations. This service is available from fully- equipped laboratories in major Australian centres.

Due to ongoing research & development, Clyde-Apac reserves the right to modify the product & specifications without notice.
