Star pleat - Dust collection filter cartridges

Due to the pleated media being star formed, the largest possible filter area is obtained in small measurements.    The material used for filter production is smooth 100% polyester. Strong and hard wearing, the cartridges are designed for ‘pulse jet’ cleaning.  Retrofit your old filter bags and cartridges with our star pleated dust filters.

For specific applications different filter fabric media can be selected, including anti-static material, PTFE, specialty cellulose, polypropelene, micromelt etc. Clyde-Apac Dust Collection products use media sourced from mills in Europe, America, Japan and Australia, with many of these items manufactured to international specifications.

Our experienced engineering and sales team can provide you with sales and service in every Australian state and throughout Southeast Asia.


CONSTRUCTION: The filter cartridge compnses of a cylindrical star pleated polyester media, which is cast in polyurethane on both ends.

Depending on design either a diffuser plate or a wire cage is inserted into the inner cylinder, located in the clean section of the cartridge, to give added support. The top plate can either be cast aluminium or a mild steel spinning.  Specially designed venturies can be supplied where design considerations justify their selection. The cartridges can be supplied for mounting on the clean or dusty side of the collector's plenum.


When your existing dust collector no longer performs, contact Clyde-Apac before you replace it
We can offer advice and solutions on how to improve your existing dust collector performance and efficiency at minimal cost.

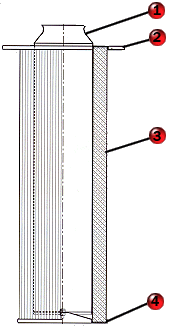

1.  Insertable Diffuser Cage with Built-In Venturi
2.  Spun Top Plate
3.  Spunbonded Polyester Filter Media
4.  Spun Bottom Plate
